MDE0A5C060K-AQ | Diotec Semiconductors
Diotec Semiconductors N/P channel, AEC-Q101 qualified FET, 60 V, 500 mA, SOT-563, MDE0A5C060K-AQ
Order No.: 09S6080
MPN:
MDE0A5C060K-AQ
Unit Price (€ / pc.)
0.1971 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1.97 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1971 €
100 pcs.
0.1232 €
250 pcs.
0.0739 €
1000 pcs.
0.0493 €
4000 pcs.
0.0394 €
*incl. VAT plus shipping costs
Subject to prior sale
N+P Channel Enhancement Mode FET, MDE0A5C060K-AQ, Diotec Semiconductors
Features
- ESD protected Gate
- Fast switching times
Applications
- Signal processing
- Battery management
- Drivers
- Logic level converter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | N/P channel, AEC-Q101 qualified | |
| max. Voltage | 60 V | |
| Max. current | 500 mA | |
| drain-source on resistance RDS (on) max @VGS=4,5V | 2 Ω | |
| drain-source on resistance RDS (on) max @VGS=10V | 1.8 Ω | |

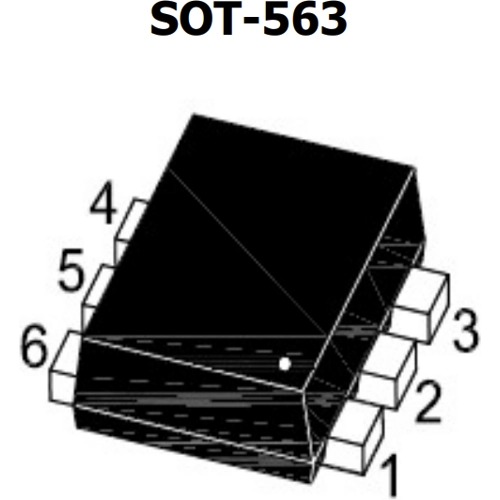

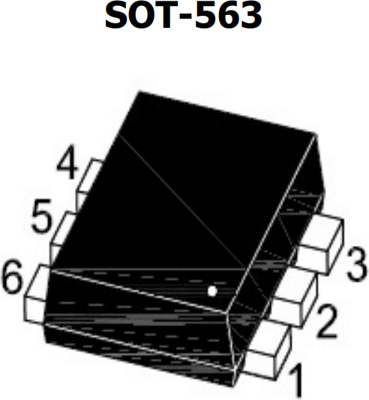

| Enclosure | SOT-563 | |
| Power loss | 450 mW | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| MSL | MSL 1 |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
