DIW300N10 | Diotec Semiconductors

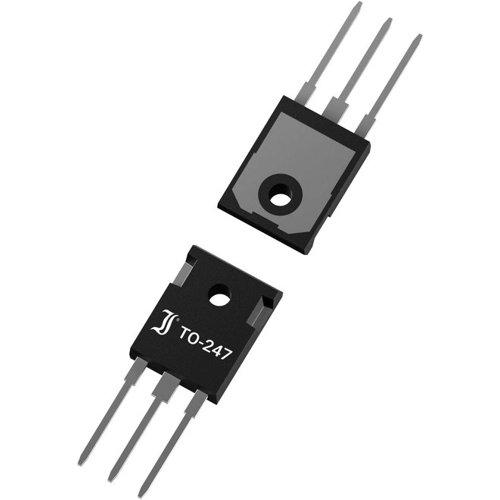

Diotec Semiconductors N channel MOSFET, 100 V, 300 A, TO-247-3L, DIW300N10

Order No.: 09S6100
MPN:
DIW300N10
Diotec Semiconductors
DIW300N10 Diotec Semiconductors MOSFETs
Image may differ
Print
Key Specification:
Version N channel
max. Voltage 100 V
Max. current 300 A
drain-source on resistance RDS (on) max @VGS=10V 1.6 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.8445 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
830.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
450 pcs.
1.8445 €
Description
Technical specifications
Download
Logistics
Compliance

SMD Small Signal Diode, DIW300N10, Diotec Semiconductors

Features

  • Very high switching speed
  • Low junction capacitance
  • Low leakage current

Applications

  • Signal processing
  • High-speed switching
  • Rectifying
Technical specifications
Version N channel
max. Voltage 100 V
Max. current 300 A
drain-source on resistance RDS (on) max @VGS=10V 1.6 mΩ
Enclosure TO-247-3L
Gate Charge Qg @10V (nC) 0.00000015 C
Power loss 250 W
Assembly THT
min. operating temperature -55 °C
max. operating temperature 175 °C
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85412900
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
