DI3A5C03SQK | Diotec Semiconductors

Name: Diotec Semiconductors N/P-channel MOSFET, 30 V, 3.5 A, SO-8, DI3A5C03SQK
Brand: Diotec Semiconductors
SKU: 09S4938
Availability: InStock

Diotec Semiconductors N/P-channel MOSFET, 30 V, 3.5 A, SO-8, DI3A5C03SQK

Order No.: 09S4938

MPN:

DI3A5C03SQK

Series: DI

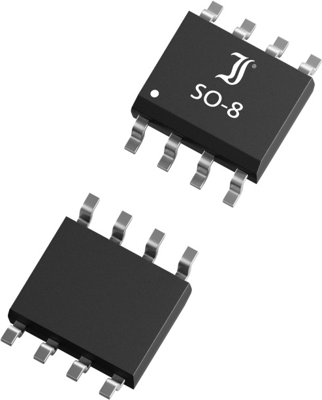

Image may differ

Key Specification:

Version N/P-channel

max. Voltage 30 V

Max. current 3.5 A

drain-source on resistance RDS (on) max @VGS=4,5V 126 mΩ

drain-source on resistance RDS (on) max @VGS=10V 98 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.2392 € *

Standard delivery time from the manufacturer is: 8 Weeks

Total Price:

956.76 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Dual N+P Channel Power MOSFET, DI3A5C03SQK, Diotec

Features

Two complementary MOSFETs
Low profile height
Low on state resistance
Fast switching times
Low gate charge
Compliant to RoHS

Applications

Power Management Units
MOSFET & IGBT driver
Class-D audio amplifier
Commercial / industrial grade

Technical specifications

Filter	Property	Value
	Power loss	2 W
	Gate Charge Qg @10V (nC)	1.25x10<sup>-8</sup> C
	Version	N/P-channel
	Assembly	SMD
	drain-source on resistance RDS (on) max @VGS=4,5V	126 mΩ
	min. operating temperature	-55 °C
	drain-source on resistance RDS (on) max @VGS=10V	98 mΩ
	max. Voltage	30 V
	Max. current	3.5 A
	Enclosure	SO-8
	max. operating temperature	150 °C
