DI300N10BTL-AQ | Diotec Semiconductors

Diotec Semiconductors N channel, AEC-Q101 qualified MOSFET, 100 V, 351 A, TO-LL, DI300N10BTL-AQ

Order No.: 09S6120
MPN:
DI300N10BTL-AQ
Diotec Semiconductors
DI300N10BTL-AQ Diotec Semiconductors MOSFETs

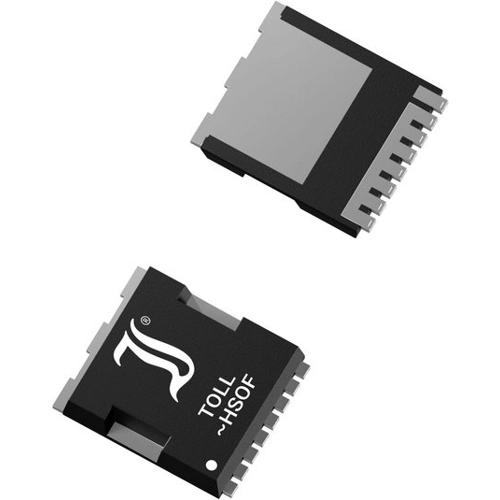

Image may differ
Print
Key Specification:
Version N channel, AEC-Q101 qualified
max. Voltage 100 V
Max. current 351 A
drain-source on resistance RDS (on) max @VGS=10V 1.6 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.1301 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
4,260.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
2.1301 €
Description
Technical specifications
Download
Logistics
Compliance

SMD Small Signal Diode, DI300N10BTL-AQ, Diotec Semiconductors

Features

  • Very high switching speed
  • Low junction capacitance
  • Low leakage current

Applications

  • Signal processing
  • High-speed switching
  • Rectifying
Technical specifications
Version N channel, AEC-Q101 qualified
max. Voltage 100 V
Max. current 351 A
drain-source on resistance RDS (on) max @VGS=10V 1.6 mΩ
Enclosure TO-LL
Gate Charge Qg @10V (nC) 0.00000015 C
Power loss 330 W
Assembly SMD
min. operating temperature -55 °C
max. operating temperature 175 °C
Articles of same specification 0
Logistics
Country of origin CN
MSL MSL 1
Customs tariff number 85412900
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
