DI110N06D1-AQ | Diotec Semiconductors

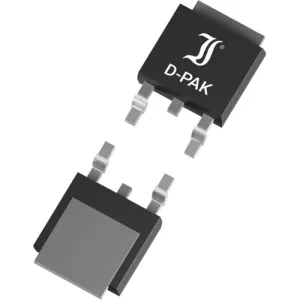

Diotec Semiconductors N channel, AEC-Q101 qualified MOSFET, 65 V, 110 A, DPAK, DI110N06D1-AQ
Order No.: 09S6082
MPN:
DI110N06D1-AQ
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 10 Weeks
SMD Small Signal Diode, DI110N06D1-AQ, Diotec Semiconductors
Features
- Very high switching speed
- Low junction capacitance
- Low leakage current
Applications
- Signal processing
- High-speed switching
- Rectifying
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | N channel, AEC-Q101 qualified | |
| max. Voltage | 65 V | |
| Max. current | 110 A | |
| drain-source on resistance RDS (on) max @VGS=4,5V | 4.5 mΩ | |
| drain-source on resistance RDS (on) max @VGS=10V | 3.2 mΩ | |
| Enclosure | DPAK | |
| Gate Charge Qg @10V (nC) | 7.5x10<sup>-8</sup> C | |
| Power loss | 71 W | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85412900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
