DI025N06BPT | Diotec Semiconductors

Name: Diotec Semiconductors N channel MOSFET, 65 V, 25 A, PowerQFN 3x3, DI025N06BPT
Brand: Diotec Semiconductors
SKU: 09S6114
Availability: InStock

Diotec Semiconductors N channel MOSFET, 65 V, 25 A, PowerQFN 3x3, DI025N06BPT

Order No.: 09S6114

MPN:

DI025N06BPT

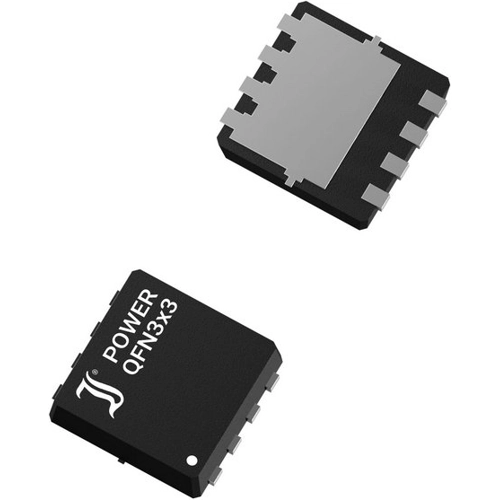

Image may differ

Key Specification:

Version N channel

max. Voltage 65 V

Max. current 25 A

drain-source on resistance RDS (on) max @VGS=4,5V 26 mΩ

drain-source on resistance RDS (on) max @VGS=10V 21 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.4522 € *

Standard delivery time from the manufacturer is: 12 Weeks

Total Price:

4.52 € *

Price list

Quantity

Price per unit*

10 pcs.

0.4522 €

100 pcs.

0.2814 €

250 pcs.

0.1689 €

1000 pcs.

0.1126 €

5000 pcs.

0.0901 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

SMD Small Signal Diode, DI025N06BPT, Diotec Semiconductors

Features

Very high switching speed
Low junction capacitance
Low leakage current

Applications

Signal processing
High-speed switching
Rectifying

Technical specifications

Filter	Property	Value
	Version	N channel
	max. Voltage	65 V
	Max. current	25 A
	drain-source on resistance RDS (on) max @VGS=4,5V	26 mΩ
	drain-source on resistance RDS (on) max @VGS=10V	21 mΩ
	Enclosure	PowerQFN 3x3
	Gate Charge Qg @10V (nC)	1x10<sup>-8</sup> C
	Power loss	20 W
	Assembly	SMD
	min. operating temperature	-55 °C
	max. operating temperature	175 °C
