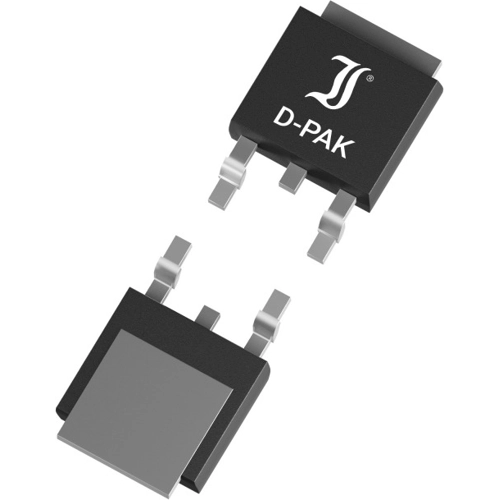

Diotec Semiconductors N channel MOSFET, 60 V, 20 A, TO-252AA, DI020N06D1-AQ
Unit Price (€ / pc.)
0.4284 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
0.43 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4284 €
100 pcs.
0.3570 €
250 pcs.
0.2844 €
1000 pcs.
0.2559 €
2500 pcs.
0.2059 €
*incl. VAT plus shipping costs
Subject to prior sale
N-Channel Power MOSFET, DI020N06D1-AQ, Diotec
Features
- Advanced Trench Technology
- Low on state resistance
- Fast switching times
- Low gate charge
- Avalanche rated
- Compliant to RoHS
Applications
- DC/DC Converters
- Power Supplies
- DC Drives
- Synchronous Rectifiers
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | N channel | |
| drain-source on resistance RDS (on) max @VGS=4,5V | 30 mΩ | |
| min. operating temperature | -55 °C | |
| drain-source on resistance RDS (on) max @VGS=10V | 34 mΩ | |
| max. operating temperature | 175 °C | |
| Gate Charge Qg @10V (nC) | 1.9x10<sup>-8</sup> C | |
| Max. current | 20 A | |
| Power loss | 25 W | |
| max. Voltage | 60 V | |
| Enclosure | TO-252AA | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,500 pieces |
| MSL | MSL 3 |
| Customs tariff number | 85412900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
