DI014N03SQ | Diotec Semiconductors

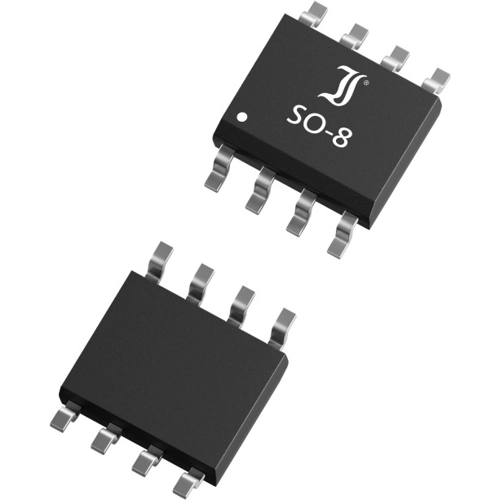

Diotec Semiconductors N channel MOSFET, 30 V, 14 A, SO-8, DI014N03SQ
Order No.: 09S6118
MPN:
DI014N03SQ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2059 € *
Standard delivery time from the manufacturer is: 10 Weeks
N-Channel Power MOSFET, DI014N03SQ, DIOTEC
Features
- Low on state resistance
- Fast switching times
- Power Trench Technology
- Low gate charge
Applications
- Power Management Units
- Battery powered devices
- Load Switches
- Polarity Protection
- DC/DC Converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | N channel | |
| max. Voltage | 30 V | |
| Max. current | 14 A | |
| drain-source on resistance RDS (on) max @VGS=4,5V | 11 mΩ | |
| drain-source on resistance RDS (on) max @VGS=10V | 8 mΩ | |
| Enclosure | SO-8 | |
| Gate Charge Qg @10V (nC) | 2.5x10<sup>-8</sup> C | |
| Power loss | 2.8 W | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Country of origin | CN |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
