DI009N10PQ-AQ | Diotec Semiconductors

Diotec Semiconductors N channel, AEC-Q101 qualified MOSFET, 100 V, 9 A, PowerQFN 5x6, DI009N10PQ-AQ

Order No.: 09S6112
MPN:
DI009N10PQ-AQ
Diotec Semiconductors
DI009N10PQ-AQ Diotec Semiconductors MOSFETs
Image may differ
Print
Key Specification:
Version N channel, AEC-Q101 qualified
max. Voltage 100 V
Max. current 9 A
drain-source on resistance RDS (on) max @VGS=4,5V 125 mΩ
drain-source on resistance RDS (on) max @VGS=10V 115 mΩ
Show variants: 2
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.1705 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
852.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.1705 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

SMD Small Signal Diode, DI009N10PQ-AQ, Diotec Semiconductors

Features

  • Very high switching speed
  • Low junction capacitance
  • Low leakage current

Applications

  • Signal processing
  • High-speed switching
  • Rectifying
Technical specifications
Version N channel, AEC-Q101 qualified
max. Voltage 100 V
Max. current 9 A
drain-source on resistance RDS (on) max @VGS=4,5V 125 mΩ
drain-source on resistance RDS (on) max @VGS=10V 115 mΩ

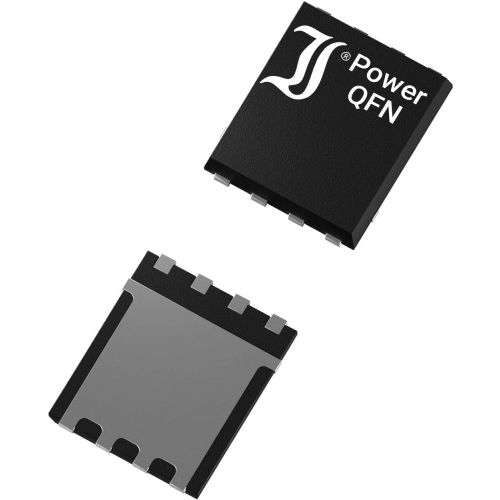

Enclosure PowerQFN 5x6
Gate Charge Qg @10V (nC) 1.9x10<sup>-8</sup> C
Power loss 26.7 W
Assembly SMD
min. operating temperature -55 °C
max. operating temperature 175 °C
Articles of same specification 0
Logistics
Country of origin CN
MSL MSL 1
Customs tariff number 85412900
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
