B500C3700-2200A | Diotec Semiconductors
Diotec Semiconductors bridge rectifier, 500 V, 1 kV (RRM), 3.7 A, SIL, B500C3700-2200A
Unit Price (€ / pc.)
1.2733 € *
Available: 72 pcs.
Available in 4 Days: 5,000 pcs. - if ordered today
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2733 €
25 pcs.
1.1424 €
100 pcs.
1.0115 €
250 pcs.
0.9163 €
500 pcs.
0.8211 €
*incl. VAT plus shipping costs
Subject to prior sale
Diode bridge rectifier, B500C3700-2200A, DIOTEC
Features
- Four diodes in bridge configuration
- For free-standing or heatsink assembly
- UL recognized
- Compliant to RoHS, REACH and conflict minerals
Applications
- 50/60 Hz mains rectification
- Power supplies
- Commercial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Assembly | THT | |

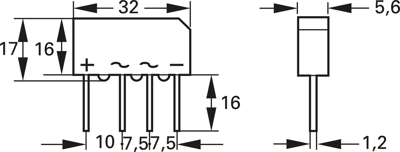

| Enclosure | SIL | |
| Input voltage | 500 V | |
| Rated current | 3.7 A | |
| Voltage V RRM (peak reverse voltage) | 1 kV | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
