BC859AW | Diotec Semiconductors

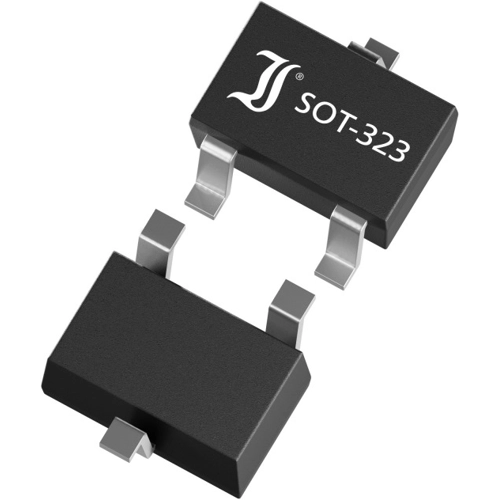

Bipolar junction transistor, PNP, -100 mA, -30 V, SMD, SOT-323, BC859AW
Unit Price (€ / pc.)
0.1000 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1000 €
100 pcs.
0.0625 €
250 pcs.
0.0375 €
1000 pcs.
0.0250 €
3000 pcs.
0.0200 €
*incl. VAT plus shipping costs
Subject to prior sale
PNP transistor, BC859AW, DIOTEC
SMD general purpose PNP transistor.
Features
- Compliant to RoHS, REACH, Conflict minerals
Applications
- Signal processing
- Switching
- Amplification
- Commercial/industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power dissipation | 0.25 W | |
| Version | PNP | |
| Min DC gain | 125 mA | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C | |
| Frequency | 100 MHz | |
| Transit frequency fTmin | 100 MHz | |
| Saturation voltage | -650 mV | |
| max.voltage between collector and emitter Vceo | -30 V | |
| Enclosure | SOT-323 | |
| Collector current | -100 mA | |
| Max DC amplification | 250 mA | |
| Assembly | SMD | |
| max.voltage between collector and base Vcbo | -30 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85412100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
