BC847S | Diotec Semiconductors

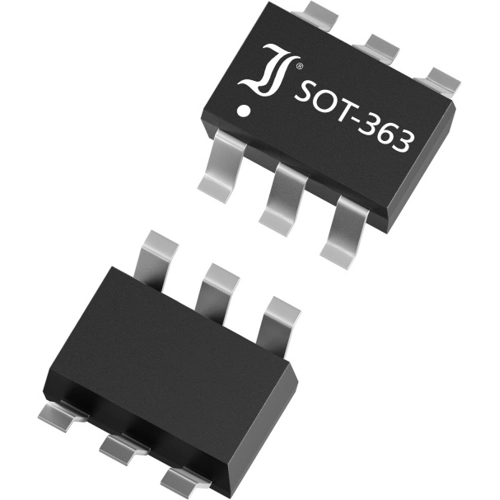

Bipolar junction transistor, NPN, 100 mA, 45 V, SMD, SOT-363, BC847S
Unit Price (€ / pc.)
0.1249 € *
Available in 4 Days: 189,000 pcs. - if ordered today
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1249 €
100 pcs.
0.0779 €
250 pcs.
0.0468 €
1000 pcs.
0.0312 €
3000 pcs.
0.0250 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD General Purpose Transistor, BC847S, Diotec
SMD General Purpose NPN Transistor
Features
- Compliant to RoHS
Applications
- Signal processing
- Switching
- Amplification
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | NPN | |
| Power dissipation | 0.25 W | |
| max.voltage between collector and base Vcbo | 50 V | |
| Frequency | 100 MHz | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max.voltage between collector and emitter Vceo | 45 V | |
| Transit frequency fTmin | 100 MHz | |
| Enclosure | SOT-363 | |
| max. operating temperature | 150 °C | |
| Collector current | 100 mA |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Country of origin | CN |
| Customs tariff number | 85412100 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
