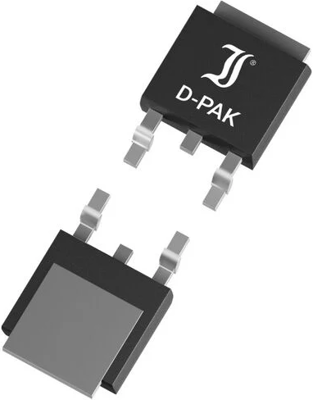

2SD1918-AQ | Diotec Semiconductors
Bipolar junction transistor, NPN, AEC-Q101 qualified, 1.5 A, 160 V, SMD, DPAK, 2SD1918-AQ
Order No.: 09S6004
MPN:
2SD1918-AQ
Unit Price (€ / pc.)
0.1965 € *
Standard delivery time from the manufacturer is: 10 Weeks
SMD High Current NPN Transistor, 2SD1918-AQ, Diotec Semiconductors
Features
- High collector current
- High power dissipation
- AEC-Q101 qualified
Applications
- Power Amplifiers
- Driver Circuits
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | DPAK | |
| Version | NPN, AEC-Q101 qualified | |
| Collector current | 1.5 A | |
| max.voltage between collector and emitter Vceo | 160 V | |
| Power dissipation | 10 W | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85412900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
