TGL41-22CA | Diotec Semiconductor

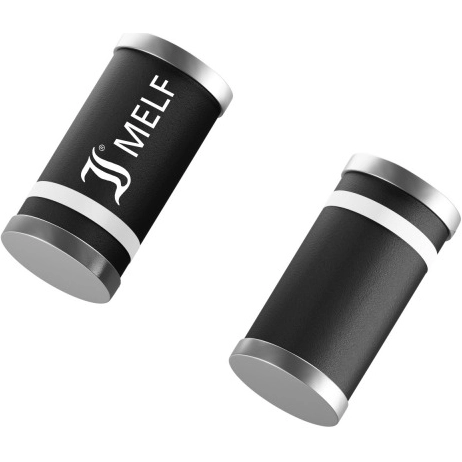

SMD TVS diode, bidirectional, 400 W, 18.8 V, DO-213AB, plastic MELF, Diotec Semiconductor TGL41-22CA
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0475 € *
Standard delivery time from the manufacturer is: 25 Weeks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bidirectional | |
| Pulse power loss | 400 W | |
| Rated blocking voltage | 18.8 V | |
| Breakdown voltage | 22 V | |
| Continuous power loss | 1 W | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| Enclosure | DO-213AB, plastic MELF |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SI |
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 5,000 pieces |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
