LDP03-26CAYD2R-AQ | Diotec Semiconductor

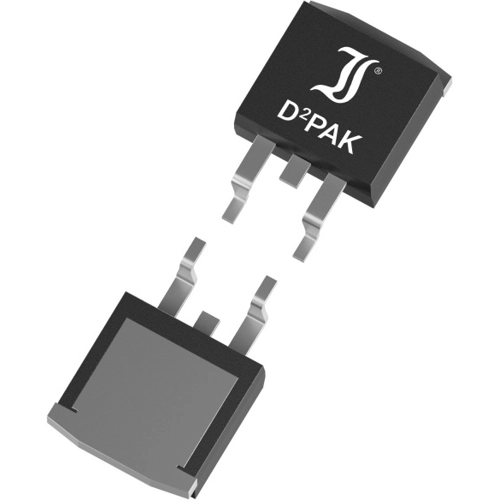

SMD TVS diode, bidirektional, AEC-Q101 qualified, 8000 W, 22 V, TO-263AB/D2PAK, Diotec Semiconductor LDP03-26CAYD2R-AQ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.5946 € *
Standard delivery time from the manufacturer is: 8 Weeks
SMD Transient Diode, LDP03-26CAYD2R-AQ, Diotec
Features
- Very fast response time
- Passing load and dump test according ISO-16750-2 2012E
Applications
- Over-voltage protection
- Load-dump protection in automotive supply
- Motor vehicle supply systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bidirektional, AEC-Q101 qualified | |
| Pulse power loss | 8000 W | |
| Rated blocking voltage | 22 V | |
| Breakdown voltage | 24.4 V | |
| Continuous power loss | 8 W | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 175 °C | |
| Assembly | SMD | |
| Enclosure | TO-263AB/D2PAK |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
