ESD9BL36P | Diotec Semiconductor

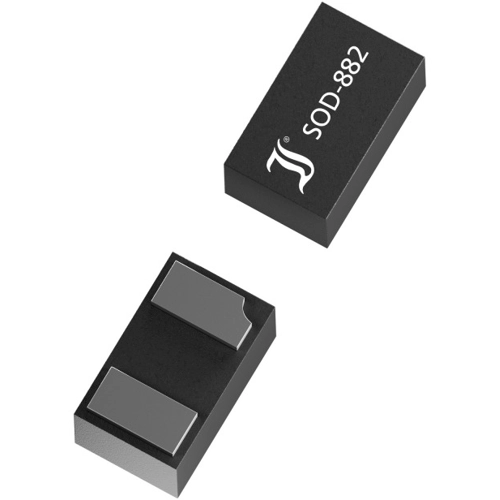

SMD ESD protection diode, bidirectional, 450 W, 36 V, DFN1006-2, Diotec Semiconductor ESD9BL36P
Order No.: 10S9230
MPN:
ESD9BL36P
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0350 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0350 €
100 pcs.
0.0303 €
250 pcs.
0.0233 €
1000 pcs.
0.0205 €
10000 pcs.
0.0163 €
*incl. VAT plus shipping costs
Subject to prior sale
ESD Protection Diode in SMD, ESD9BL36P, Diotec Semiconductor
Features
- Low junction capacitance
- Low leakage current
- Miniature case outline
Applications
- ESD protection
- Data line and I/O port protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bidirectional | |
| Pulse power loss | 450 W | |
| Rated blocking voltage | 36 V | |
| Breakdown voltage | 44 V | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| Enclosure | DFN1006-2 | |
| Capacity | 20 pF |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
