FX20K120 | Diotec Semiconductor

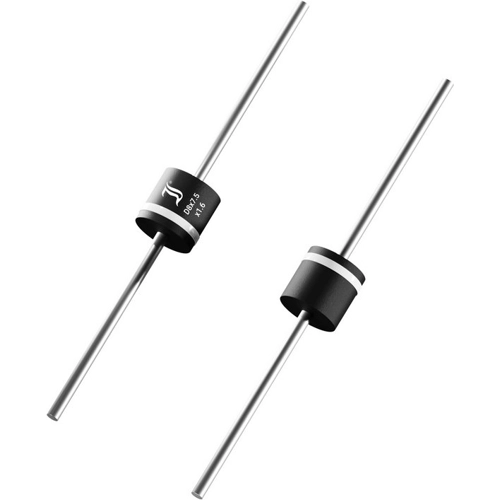

Fast rectifier diode, 20 A, P600, protectify, FX20K120
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.7378 € *
Available: 975 pcs.
Available in 4 Days: 500 pcs. - if ordered today
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7378 €
25 pcs.
0.5831 €
100 pcs.
0.5236 €
250 pcs.
0.4641 €
500 pcs.
0.4284 €
*incl. VAT plus shipping costs
Subject to prior sale
Features
- Low forward voltage drop
- Low thermal resistance
- High forward surge capability
- High reverse robustness
- Package smaller than industry standard
Applications
- Rectification of medium frequencies
- Free.wheelingdiodes for tools and DC motors
- Polarity Protection for Power Tools, Brushed DC Motors, Actuator Coils
- Solar Bypass diodes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | fast rectifier diode | |
| Version | protectify | |
| Enclosure | P600 | |
| Rated blocking voltage | 130 V | |
| Voltage V RRM (peak reverse voltage) | 120 V | |
| Forward Current | 20 A | |
| Assembly | THT | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 175 °C | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Ammopack with 1,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
