F1200D | Diotec Semiconductor

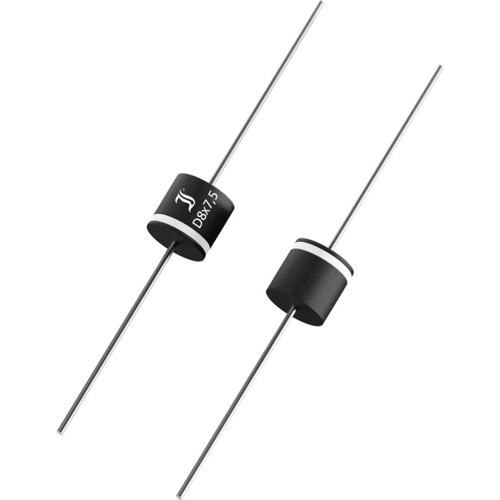

Fast rectifier diode, 200 V, 12 A, P600, F1200D
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.5950 € *
Available in 4 Days: 3,500 pcs. - if ordered today
Total Price:
0.60 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5950 €
25 pcs.
0.4760 €
100 pcs.
0.4284 €
250 pcs.
0.3808 €
500 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale
Fast Efficient SMD Rectifier Diode
Features
- Low leakage current
- Low forward voltage drop
- High forward surge capability
- Package smaller than industry standard
Applications
- Rectification of medium frequencies
- Free-wheeling diodes
- Polarity Protection
- Solar Bypass diodes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | fast rectifier diode | |
| Enclosure | P600 | |
| Voltage V RRM (peak reverse voltage) | 200 V | |
| Surge blocking voltage V RMS | 200 V | |
| Forward Current | 12 A | |
| Number of diodes | 1 | |
| Assembly | axial | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 150 °C | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Ammopack with 1,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
