ESW8006-AQ | Diotec Semiconductor

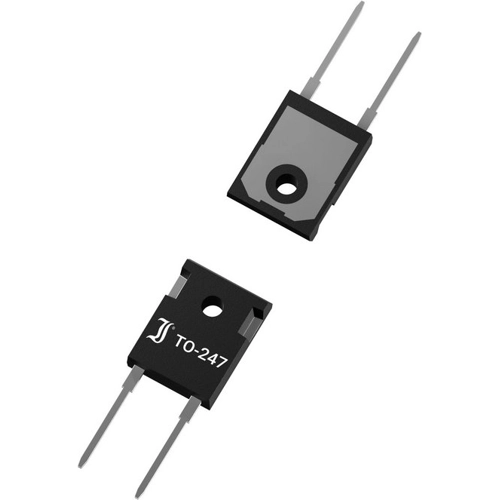

Superfast rectifier diode, 650 V, 80 A, TO-3P, TO-247, AEC-Q101 qualified, ESW8006-AQ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.1424 € *
Standard delivery time from the manufacturer is: 8 Weeks
Superfast Rectifier Diode, ESW8006-AQ, Diotec
Superfast Efficient Rectifier Diodes with Soft Recovery
Features
- Soft reverse recovery
- Very low recovery time
- AEC-Q101 qualified
Applications
- Rectification of high frequencies
- Free-wheeling diodes
- Power factor correction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | superfast rectifier diode | |
| Version | AEC-Q101 qualified | |
| Enclosure | TO-3P, TO-247 | |
| Voltage V RRM (peak reverse voltage) | 650 V | |
| Surge blocking voltage V RMS | 650 V | |
| Forward Current | 80 A | |
| Number of diodes | 1 | |
| Assembly | THT | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 175 °C | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 30 pieces |
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
