BYG23T-AQ | Diotec Semiconductor

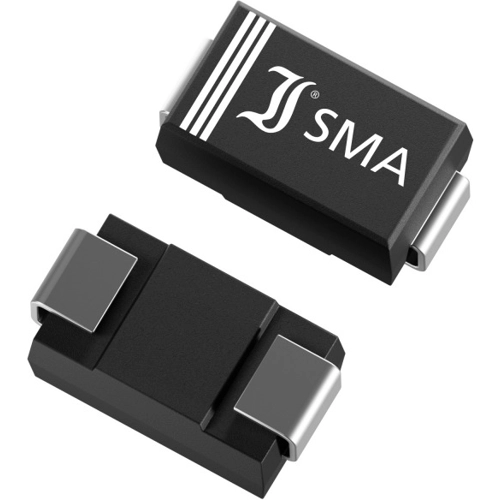

Ultrafast rectifier diode, 1350 V, 1 A, DO-214AC, SMA, AEC-Q101 qualified, BYG23T-AQ
Order No.: 70S0890
MPN:
BYG23T-AQ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0762 € *
Standard delivery time from the manufacturer is: 8 Weeks
Ultrafast Avalanche SMD Rectifier Diode, BYG23T-AQ, Diotec
Features
- Controlled avalanche characteristic
- Low reverse recovery time
- AEC-Q101 qualified
Applications
- Rectification of higher frequencies
- High speed switching
- Bootsraap and Snubber diodes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | ultra-fast avalanche rectifier diode | |
| Version | AEC-Q101 qualified | |
| Enclosure | DO-214AC, SMA | |
| Voltage V RRM (peak reverse voltage) | 1300 V | |
| Surge blocking voltage V RMS | 1350 V | |
| Forward Current | 1 A | |
| Number of diodes | 1 | |
| Assembly | SMD | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 175 °C | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 7,500 pieces |
| Country of origin | CN |
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
