2CL71 | Diotec Semiconductor

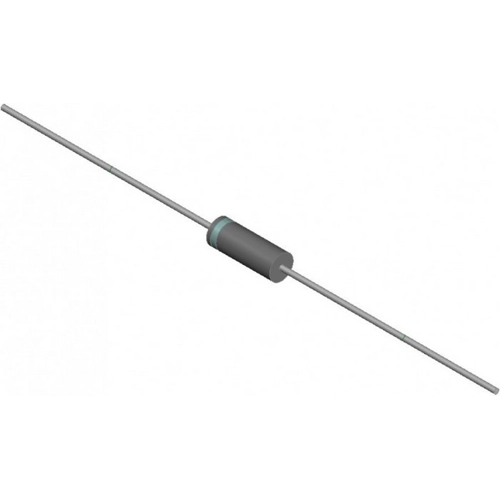

High voltage diode, 8000 V, 5 mA, 3 x 8, 2CL71
Order No.: 70S0322
MPN:
2CL71
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1321 € *
Available in 4 Days: 5,000 pcs. - if ordered today
Ultrafast Recovery High Voltage Rectifier Diode, 2CL71, Diotec
Features
High creepage and clearance
Applications
- High voltage rectification at medium to high frequencies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | high voltage diode | |
| Enclosure | 3 x 8 | |
| Voltage V RRM (peak reverse voltage) | 8000 V | |
| Surge blocking voltage V RMS | 8000 V | |
| Forward Current | 5 mA | |
| Number of diodes | 1 | |
| Assembly | axial | |
| Junction temperature (min.) | -40 °C | |
| Junction temperature (max.) | 120 °C | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 5,000 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
