1N4003 | Diotec Semiconductor

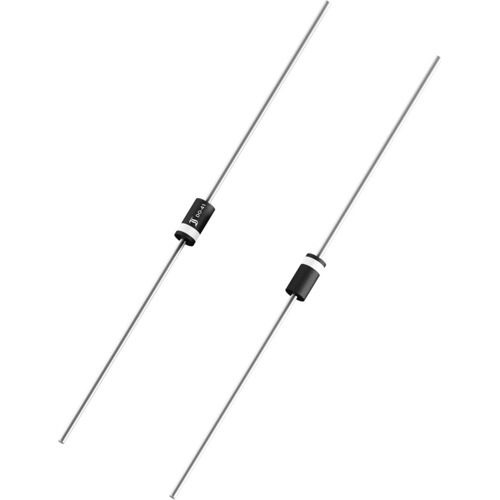

Rectifier diode, 200 V, 1 A, DO-204AC, DO-41, 1N4003
Unit Price (€ / pc.)
0.0619 € *
Available: 600 pcs.
Available in 4 Days: 50,000 pcs. - if ordered today
Total Price:
6.19 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0619 €
300 pcs.
0.0428 €
1000 pcs.
0.0369 €
3000 pcs.
0.0298 €
10000 pcs.
0.0250 €
*incl. VAT plus shipping costs
Subject to prior sale
Standard Recovery Rectifier Diode
Applications
- 50/60 Hz Mains Rectification
- Power Supplies
- Polarity Protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | rectifier diode | |
| Enclosure | DO-204AC, DO-41 | |
| Voltage V RRM (peak reverse voltage) | 200 V | |
| Surge blocking voltage V RMS | 200 V | |
| Forward Current | 1 A | |
| Assembly | THT | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 175 °C | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ammopack with 1 piece |
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
