MD03C090 | Diotec Semiconductor

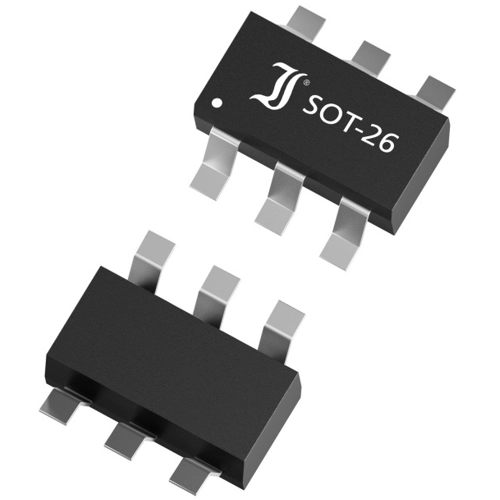

Diotec Semiconductor N/P-channel MOSFET, 30 V, 3.7 A, SOT-26, MD03C090
Order No.: 10S9344
MPN:
MD03C090
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1057 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1057 €
100 pcs.
0.0916 €
250 pcs.
0.0704 €
1000 pcs.
0.0616 €
3000 pcs.
0.0493 €
*incl. VAT plus shipping costs
Subject to prior sale
N+P Channel Power MOSFET, MD03C090, Diotec Semiconductor
Features
- Two complementary MOSFETs
- Tiny, space saving package
- Low profile height
- Low on state resistance
- Fast switching times
- Low gate charge
Applications
- Power Management Units
- Battery powered devices
- Load Switches
- Polarity Protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | N/P-channel | |
| max. Voltage | 30 V | |
| Max. current | 3.7 A | |
| drain-source on resistance RDS (on) max @VGS=4,5V | 95 mΩ | |
| drain-source on resistance RDS (on) max @VGS=10V | 58 mΩ | |
| Enclosure | SOT-26 | |
| Power loss | 1.2 W | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
