DI260N04PQ | Diotec Semiconductor

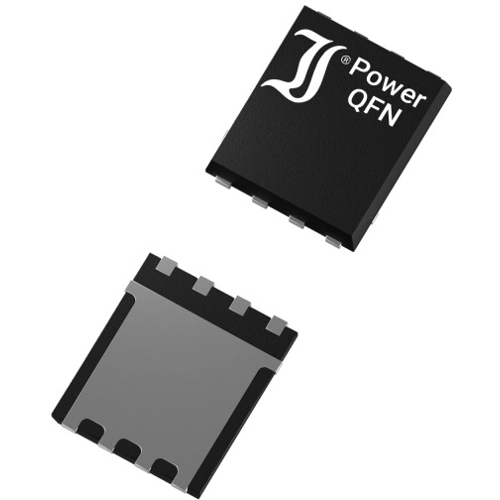

Diotec Semiconductor N channel MOSFET, 40 V, 260 A, PowerQFN 5x6, DI260N04PQ
Order No.: 10S9418
MPN:
DI260N04PQ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.9282 € *
Standard delivery time from the manufacturer is: 10 Weeks
N-Channel Power MOSFET, DI260N04PQ, Diotec Semiconductor
Features
- Low profile, space saving package
- Standard Level Gate Driver
- Low on state resistance
- Fast switching times
- Low gate charge
- Avalanche rated
Applications
- DC/DC Converters
- Power Supplies
- DC Drives
- Power Tools
- Synchronous Rectifiers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | N channel | |
| max. Voltage | 40 V | |
| Max. current | 260 A | |
| drain-source on resistance RDS (on) max @VGS=10V | 0.8 mΩ | |
| Enclosure | PowerQFN 5x6 | |
| Power loss | 79 W | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
