DI056N10D2 | Diotec Semiconductor

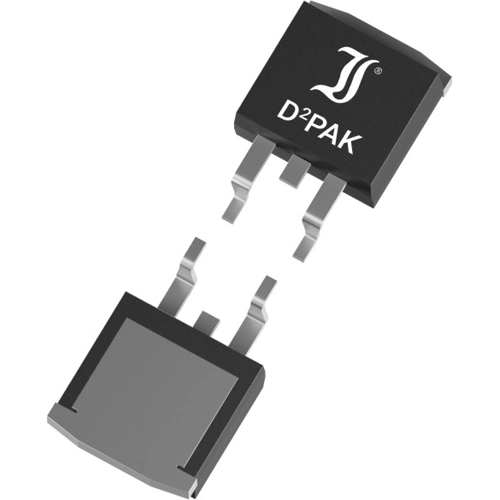

Diotec Semiconductor N channel MOSFET, 100 V, 56 A, D2PAK, DI056N10D2
Order No.: 09S6130
MPN:
DI056N10D2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.7616 € *
Available in 4 Days: 800 pcs. - if ordered today
N-Channel Power MOSFET, DI056N10D2, DIOTEC
Features
- Logic Level Gate Drive
- Low on state resistance
- Fast switching times
- Low gate charge
- Avalanche rated
Applications
- Power Factor Correction (PFC)
- Uninterruptible Power
- Supplies (UPS)
- Battery Charger
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | N channel | |
| max. Voltage | 100 V | |
| Max. current | 56 A | |
| drain-source on resistance RDS (on) max @VGS=4,5V | 13 mΩ | |
| drain-source on resistance RDS (on) max @VGS=10V | 9.5 mΩ | |
| Enclosure | D2PAK | |
| Gate Charge Qg @10V (nC) | 3.8x10<sup>-8</sup> C | |
| Power loss | 57.6 W | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| MSL | MSL 1 |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
