DI050N04PQ2-AQ | Diotec Semiconductor

Diotec Semiconductor N/N channel, AEC-Q101 qualified MOSFET, 40 V, 50 A, PowerQFN 5x6, DI050N04PQ2-AQ

Order No.: 10S9406
MPN:
DI050N04PQ2-AQ
Diotec Semiconductor
DI050N04PQ2-AQ Diotec Semiconductor MOSFETs

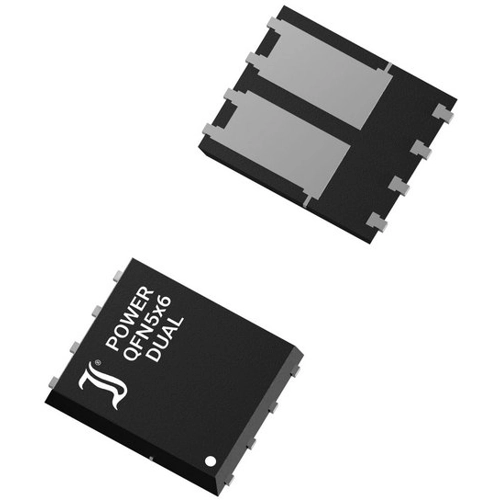

Image may differ
Print
Key Specification:
Version N/N channel, AEC-Q101 qualified
max. Voltage 40 V
Max. current 50 A
drain-source on resistance RDS (on) max @VGS=10V 8.5 mΩ
Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)
0.2486 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1,242.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.2486 €
Description
Technical specifications
Download
Logistics
Compliance

Dual N-Channel Power MOSFET, DI050N04PQ2-AQ, Diotec Semiconductor

Features

  • Dual MOSFET
  • Low profile, space saving package
  • Low on state resistance
  • Fast switching times
  • Low gate charge
  • Avalanche rated

Applications

  • DC/DC Converters
  • Power Supplies
  • DC Drives
  • Synchronous Rectifiers
Technical specifications
Version N/N channel, AEC-Q101 qualified
max. Voltage 40 V
Max. current 50 A
drain-source on resistance RDS (on) max @VGS=10V 8.5 mΩ
Enclosure PowerQFN 5x6
Gate Charge Qg @10V (nC) 1.9x10<sup>-8</sup> C
Power loss 20 W
Assembly SMD
min. operating temperature -55 °C
max. operating temperature 175 °C
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85412900
MSL MSL 1
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
