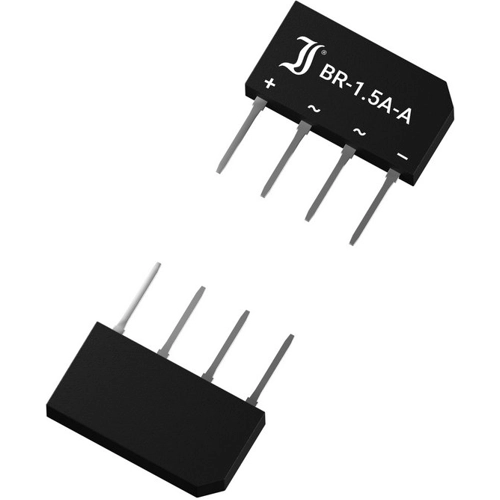

B250C1500B | Diotec Semiconductor
Diotec Semiconductor bridge rectifier, 250 V, 600 V (RRM), 2.3 A, SIL, B250C1500B
This item is no longer available.
As an alternative, we recommend the following item:

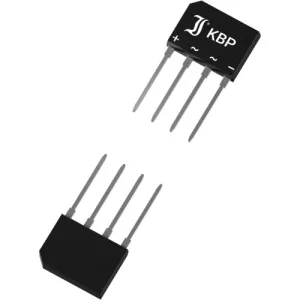

Diotec Semiconductor bridge rectifier, 420 V, 600 V (RRM), 3 A, KBP, KBP306G
Order No.: 62A302
Manufacturer: Diotec Semiconductor
per pc. 0.2892 € *
Bridge rectifier, B250C1500B, DIOTEC
Features
- For free-standing or heatsink assembly
- UL recognized
- Compliant to RoHS, REACH and conflict minerals
Applications
- 50/60 Hz mains rectification
- Power supplies
- Commercial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Assembly | THT | |
| Enclosure | SIL | |
| Input voltage | 250 V | |
| Rated current | 2.3 A | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
