B125C5000-3300A | Diotec Semiconductor
Diotec Semiconductor bridge rectifier, 125 V, 250 V (RRM), 5 A, SIL, 32 x 17 x 5.6, B125C5000-3300A
This item is no longer available.
As an alternative, we recommend the following item:

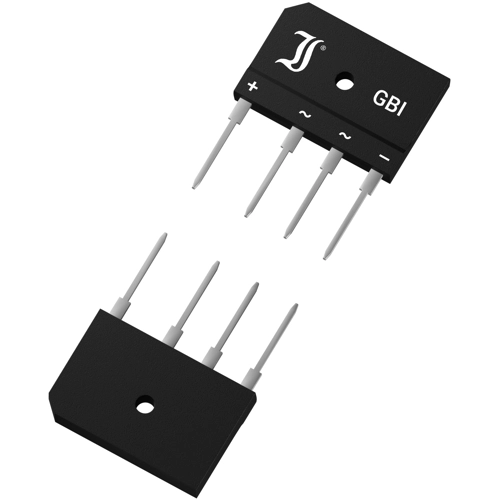

Diotec Semiconductor bridge rectifier, 280 V, 400 V (RRM), 20 A, SIL, GBI20G
Order No.: 09S4158
Manufacturer: Diotec Semiconductor
per pc. 0.6664 € *
Single Phase Diode Bridge Rectifier, B125C5000-3300A, DIOTEC
Features
- Four diodes in bridge configuration
- For free-standing or heatsink assembly
- UL recognized
Applications
- 50/60 Hz mains rectification
- Power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Assembly | THT | |

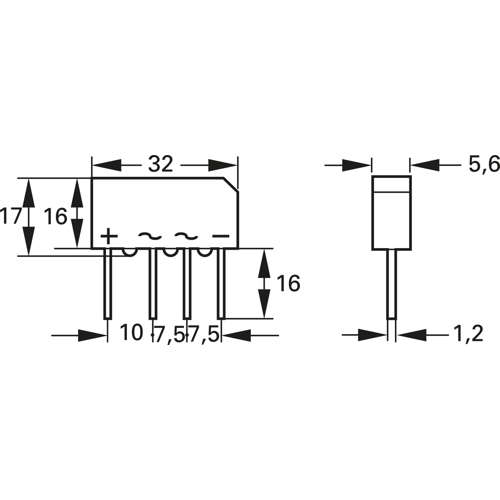

| Enclosure | SIL, 32 x 17 x 5.6 | |
| Input voltage | 125 V | |
| Rated current | 5 A | |
| Voltage V RRM (peak reverse voltage) | 250 V | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
