MMDT5113W-AQ | Diotec Semiconductor

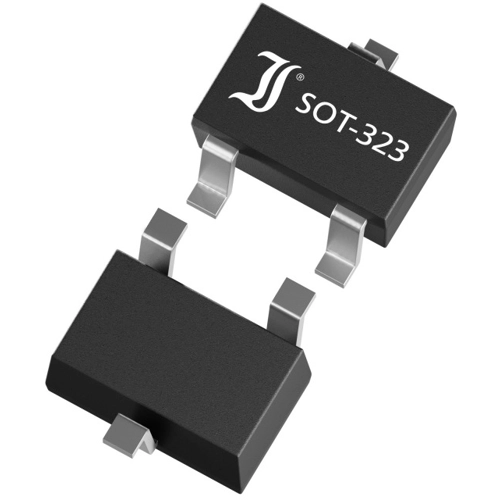

Bipolar junction transistor, PNP, -100 mA, SMD, SOT-323, MMDT5113W-AQ
Order No.: 10S9210
MPN:
MMDT5113W-AQ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0311 € *
Available in 4 Days: 3,000 pcs. - if ordered today
Total Price:
0.31 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0311 €
100 pcs.
0.0269 €
250 pcs.
0.0207 €
1000 pcs.
0.0181 €
3000 pcs.
0.0145 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD Digital PNP Transistor, MMDT5113W-AQ, Diotec Semiconductor
Features
- Cost and space savings by integrated bias resistor combinations
Applications
- Digital controls
- Switching
- Signal processing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | SOT-323 | |
| Version | PNP | |
| Collector current | -100 mA | |
| Power dissipation | 200 mW | |
| Transit frequency fTmin | 250 MHz | |
| Min DC gain | 80 mA | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85412100 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
