Unit Price (€ / pc.)
0.2130 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
0.21 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2130 €
25 pcs.
0.1928 €
100 pcs.
0.1797 €
*incl. VAT plus shipping costs
Subject to prior sale

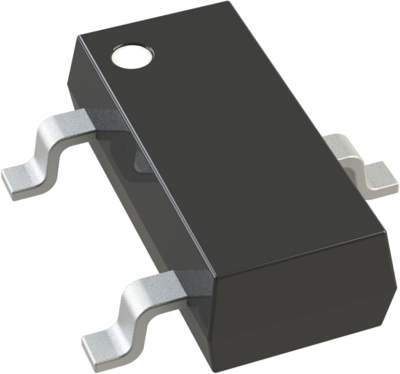

Adjustable Precision Zener Shunt Regulator, ZR431F, Diodes
The ZR431F is a three terminal adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 100mA. The output voltage may be set to any chosen voltage between 2.5 and 20 volts by selection of two external divider resistors
Features
- Temperature Compensated for Operation
- Over the Full Temperature Range
- Programmable Output Voltage
- Low Output Noise
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOT-23 | |
| Output voltage DC | 2.5-20 V | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
