1N4148WT-7 | Diodes

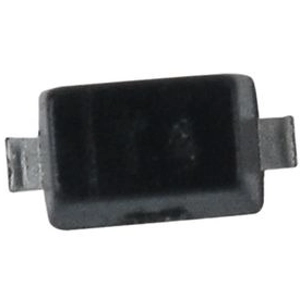

Switching Diode, 150 mW, 80 V, SOD-523, Diodes 1N4148WT-7
Unit Price (€ / pc.)
0.0699 € *
Standard delivery time from the manufacturer is: 1 Week
Switching diode, 1N4148WT-7, Diodes
The 1N4148WT-7 is a surface mount fast switching diode for general-purpose switching applications.
Features
- Fast switching speed
- Very small surface-mount package
- High conductance
- Totally lead-free
- Fully RoHS compliant
- Halogen and antimony free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOD-523 | |
| Pulse power loss | 150 mW | |
| Breakdown voltage | 80 V | |
| Assembly | SMD | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 150 °C | |
| Rated blocking voltage | 80 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
