ZXMN4A06GTA | Diodes

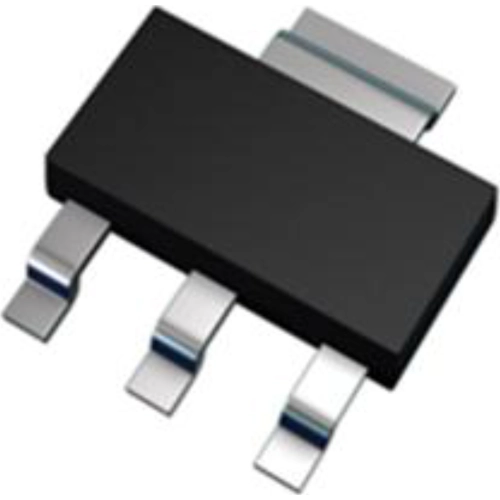

Diodes N channel MOSFET, 40 V, 7 A, TO-261, ZXMN4A06GTA
Order No.: 33S2876
EAN: 4099879034588
MPN:
ZXMN4A06GTA
Unit Price (€ / pc.)
0.9639 € *
Standard delivery time from the manufacturer is: 10 Weeks
MOSFET, ZXMN4A06GTA, Diodes
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Features
- Low on-resistance
- Fast switching speed
- Low threshold
- Low gate drive
Applications
- DC-DC Converters
- Audio output stages
- Relay and solenoid driving
- Motor control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Gate Charge Qg @10V (nC) | 1.82x10<sup>-8</sup> C | |
| Assembly | SMD | |
| drain-source on resistance RDS (on) max @VGS=10V | 50 mΩ | |
| max. Voltage | 40 V | |
| Version | N channel | |
| max. operating temperature | 150 °C | |
| Enclosure | TO-261 | |
| min. operating temperature | -55 °C | |
| Max. current | 7 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
