ZXMN10A08E6TA | Diodes

Diodes N channel MOSFET, 100 V, 1.5 A, SOT-23, ZXMN10A08E6TA

Order No.: 33S2837
EAN: 4099879034519
MPN:
ZXMN10A08E6TA
Series: ZXMN10
Diodes
ZXMN10A08E6TA Diodes MOSFETs

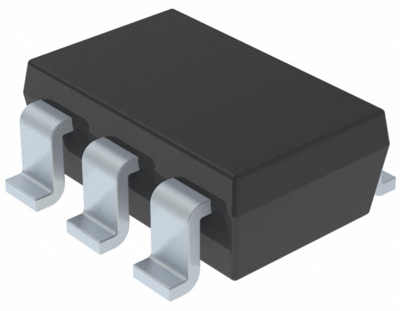

Image may differ
Print
Key Specification:
Version N channel
max. Voltage 100 V
Max. current 1.5 A
drain-source on resistance RDS (on) max @VGS=10V 250 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.5712 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
0.5712 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, ZXMN10A08E6TA, Diodes

This MOSFET features a unique structure, combining the benefits of low on-resistance and fast switching, making it ideal for highefficiency, power management applications.

Features

  • Low on-resistance
  • Fast switching speed

Applications

  • DC-DC Converters
  • Power management functions
  • Motor control
  • Disconnect switches
Technical specifications
max. Voltage 100 V
Power loss 1.7 W
drain-source on resistance RDS (on) max @VGS=10V 250 mΩ
Enclosure SOT-23
Max. current 1.5 A
Gate Charge Qg @10V (nC) 7.7x10<sup>-9</sup> C
max. operating temperature 150 °C
Assembly SMD
min. operating temperature -55 °C
Version N channel
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85412900
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
SVHC free Yes
