ZXM61N02FTA | Diodes

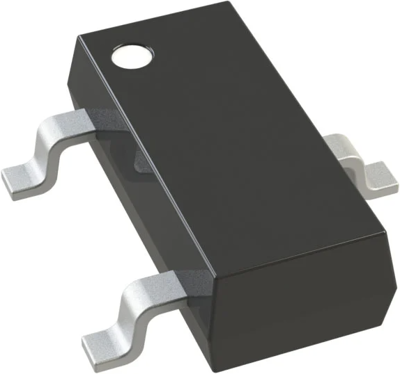

Diodes N channel N-channel MOSFET in enhancement mode, 20 V, 1.7 A, SOT-23, ZXM61N02FTA
Order No.: 33S2795
MPN:
ZXM61N02FTA
Unit Price (€ / pc.)
0.1749 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
0.17 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1749 €
25 pcs.
0.1642 €
100 pcs.
0.1535 €
250 pcs.
0.1416 €
*incl. VAT plus shipping costs
Subject to prior sale
N-Channel MOSFET, ZXM61N02FTA, Diodes
This new generation of high density MOSFETs from Zetex utilises a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.
Features
- Low on-resistance
- Fast switching speed
- Low threshold
- Low gate drive
Applications
- DC - DC Converters
- Power Management Functions
- Disconnect switches
- Motor control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Voltage | 20 V | |
| Power loss | 806 mW | |
| drain-source on resistance RDS (on) max @VGS=4,5V | 180 mΩ | |
| Enclosure | SOT-23 | |
| Max. current | 1.7 A | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
