DMN2004DWK-7 | Diodes

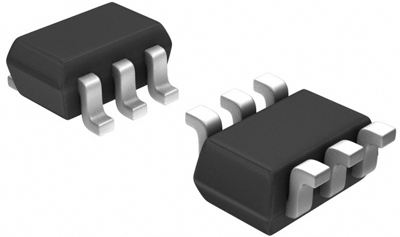

Diodes N channel MOSFET, 20 V, 540 mA, SOT-363, DMN2004DWK-7

Order No.: 33S2184
EAN: 4099879034366
MPN:
DMN2004DWK-7
Diodes
DMN2004DWK-7 Diodes MOSFETs
Image may differ
Print
Key Specification:
Version N channel
max. Voltage 20 V
Max. current 540 mA
drain-source on resistance RDS (on) max @VGS=10V 550 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.4522 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
4.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
0.4522 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, DMN2004DWK-7, Diodes

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Features

  • Low on-resistance
  • Low gate threshold voltage
  • Low input capacitance
  • Fast switching speed
  • Low Input/Output Leakage
  • Ultra-Small surface mount package

Applications

  • Load switch
Technical specifications
max. Voltage 20 V
Power loss 200 mW
drain-source on resistance RDS (on) max @VGS=10V 550 mΩ
Enclosure SOT-363
Max. current 540 mA
max. operating temperature 150 °C
Assembly SMD
min. operating temperature -65 °C
Version N channel
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85412900
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
SVHC free Yes
