DMG3402L-7 | Diodes

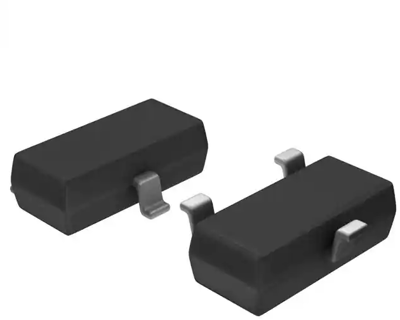

Diodes N channel FET, 30 V, 4 A, TO-236, DMG3402L-7
Order No.: 33S2092
EAN: 4099879034304
MPN:
DMG3402L-7
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 1 Week
Transistor, DMG3402L-7, Diodes
N-channel enhancement mode field effect transistor
Features
- Low on-resistance
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Low Input/Output Leakage
Applications
- DC-DC Converters
- Power management functions
- Battery operated systems and solid-state relays
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Voltage | 30 V | |
| Power loss | 1.4 W | |
| drain-source on resistance RDS (on) max @VGS=10V | 52 mΩ | |
| Enclosure | TO-236 | |
| Max. current | 4 A | |
| Gate Charge Qg @10V (nC) | 1.17x10<sup>-8</sup> C | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85412900 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
