BSS123W-7-F | Diodes

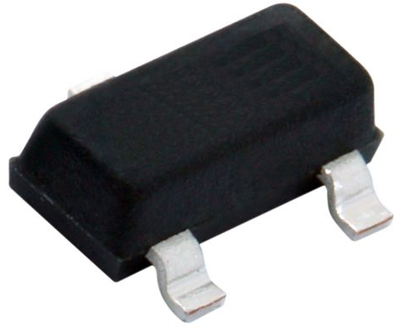

Diodes N channel MOSFET, 100 V, 170 mA, SOT-323, BSS123W-7-F
Unit Price (€ / pc.)
0.0666 € *
Standard delivery time from the manufacturer is: 10 Weeks
MOSFET, BSS123W-7-F, Diodes
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Features
- Low Gate Threshold Voltage
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOT-323 | |
| drain-source on resistance RDS (on) max @VGS=10V | 6 Ω | |
| max. Voltage | 100 V | |
| Power loss | 200 mW | |
| Assembly | SMD | |
| Max. current | 170 mA | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Country of origin | CN |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
