BSN20-7 | Diodes

Diodes N channel MOSFET, 50 V, 500 mA, TO-236, BSN20-7

Order No.: 33S2009
EAN: 4099879034229
MPN:
BSN20-7
Series: BSN
Diodes
BSN20-7 Diodes MOSFETs

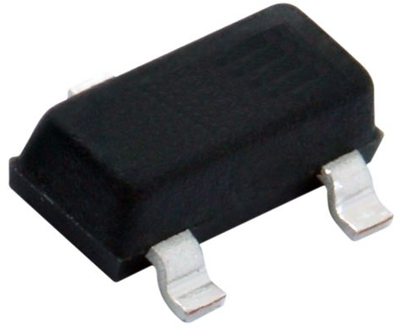

Image may differ
Print
Key Specification:
Version N channel
max. Voltage 50 V
Max. current 500 mA
drain-source on resistance RDS (on) max @VGS=10V 1.8 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.2570 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2.57 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
0.2570 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, BSN20-7, Diodes

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Features

  • Low on-resistance
  • Low input capacitance
  • Fast switching speed
  • Low Input/Output Leakage

Applications

  • Backlighting
  • DC-DC Converters
  • Power management functions
Technical specifications
max. Voltage 50 V
Power loss 920 mW
drain-source on resistance RDS (on) max @VGS=10V 1.8 Ω
Enclosure TO-236
Max. current 500 mA
Gate Charge Qg @10V (nC) 8x10<sup>-10</sup> C
max. operating temperature 150 °C
Assembly SMD
min. operating temperature -55 °C
Version N channel
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85412900
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
SVHC free Yes
