BC847CT-7-F | Diodes

Bipolar junction transistor, NPN, 100 mA, 45 V, SMD, SOT-523, BC847CT-7-F

Order No.: 32S5057
EAN: 4099879031136
MPN:
BC847CT-7-F
Series: BC
BC847CT-7-F Diodes Bipolar Transistors

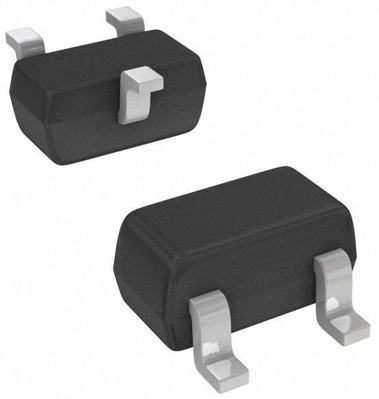

Image may differ
Unit Price (€ / pc.)
0.0250 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
74.97 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.0250 €

NPN transistor, BC847CT-7-F, DIODES

NPN small signal transistor in SOT523 package.

Features

  • Halogen and antimony free
  • RoHS Compliant
Technical specifications
Filter Property Value
Power dissipation 0.15 W
Assembly SMD
max.voltage between collector and base Vcbo 50 V
Transit frequency fTmin 100 MHz
Max DC amplification 50 mA
Rated current 100 mA
max. operating temperature 150 °C
Version NPN
Enclosure SOT-523
Collector current 100 mA
Min DC gain 45 mA
Saturation voltage 600 mV
min. operating temperature -55 °C
max.voltage between collector and emitter Vceo 45 V
Logistics
Property Value
Country of origin CN
Original Packaging Reel with 3,000 pieces
Customs tariff number 85412900
MSL MSL 1
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 6/8/11
RoHS conform Yes
