BC817-40-7-F | Diodes

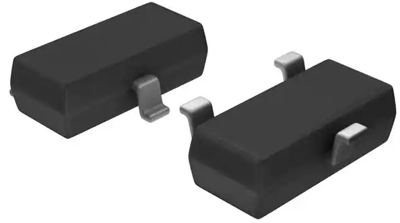

Bipolar junction transistor, NPN, 500 mA, 45 V, SMD, SOT-23, BC817-40-7-F
Unit Price (€ / pc.)
0.0726 € *
Standard delivery time from the manufacturer is: On Request
NPN transistor, BC817-40-7-F, DIODES
NPN small signal transistor in SOT23 case. It is ideally suited for automatic insertion.
Features
- Halogen and antimony free
- RoHS Compliant
- Qualified to AEC-Q101 standards for high reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | 50 V | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Min DC gain | 250 mA | |
| max.voltage between collector and emitter Vceo | 45 V | |
| Collector current | 500 mA | |
| Saturation voltage | 700 mV | |
| Transit frequency fTmin | 100 MHz | |
| Version | NPN | |
| Enclosure | SOT-23 | |
| Power dissipation | 0.31 W | |
| Max DC amplification | 600 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
