DK-3P16-075 | DIGITUS
Charging cable, 7.5 m, type 2 to type 2, 3 phase, mode 3, 16 A, 400 V, DK-3P16-075
Order No.: 33P961
EAN: 4016032481430
MPN:
DK-3P16-075

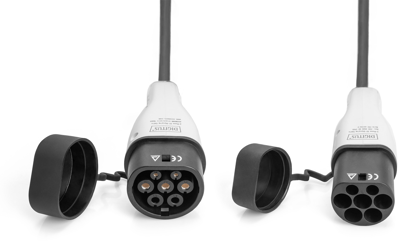

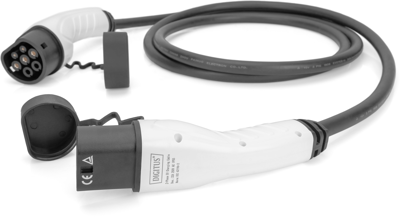

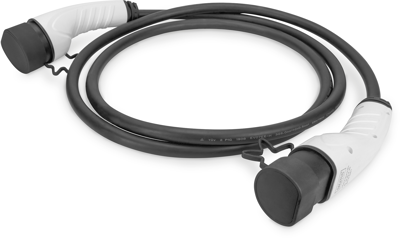

EV charging cable, DK-3P16-075, DIGITUS
The DK-3P16-075 car charging cable allows you to easily connect any vehicle with type 2 plug to public charging stations or wallboxes with charging socket. This product is easy to carry - lightweight and flexible cable, easy to store in car boot or hang it in garage. Safety and durability - high quality copper cable and TPU material as outer jacket along with IP55 provides maximum protection for your EV charger and your car.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | type 2 | |
| Connection (2) | type 2 | |
| Number of phases | 3 | |
| Loading mode | mode 3 | |
| Cable length | 7.5 m | |
| Colour | black | |
| Cable cross-section | 5 x 2.5 mm² + 1 x 0.75 mm² | |
| Rated current | 16 A | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
