DK-1743-VH-D-1 | DIGITUS
LSOH installation cable, Cat 7, 8-wire, AWG 23/1, orange, DK-1743-VH-D-1
Order No.: 96F170
EAN: 4016032392118
MPN:
DK-1743-VH-D-1
Unit Price (€ / pck.)
280.8995 € *
Standard delivery time from the manufacturer is: 6 Weeks

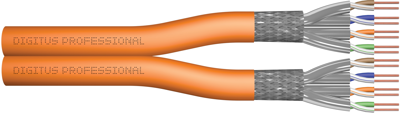

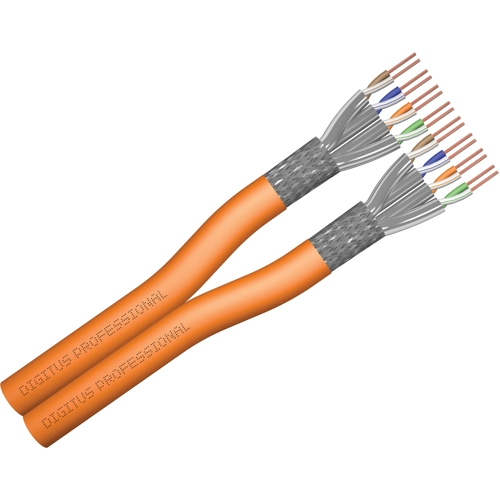

CAT 7 S-FTP installation cable, DK-1743-VH-D-1, DIGITUS
The Cat 7 installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.
Features
- 10GBit Ethernet
- 1200 MHz transmission frequency
- Permanent link certified
- PoE Power over Ethernet support
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Category | Cat 7 | |
| Version | installation cable | |
| Number of cores | 8 | |
| Colour | orange | |
| AWG cross-section | AWG 23/1 | |
| Material | LSOH | |
| Temperature range (unmoved) | -20 to 60 °C | |
| Halogen free | Yes | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444920 |
| Country of origin | CN |

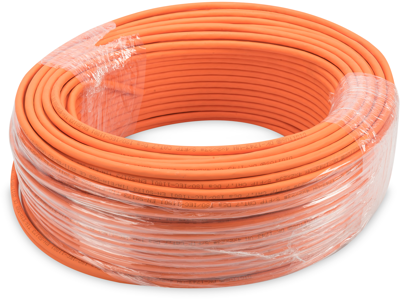

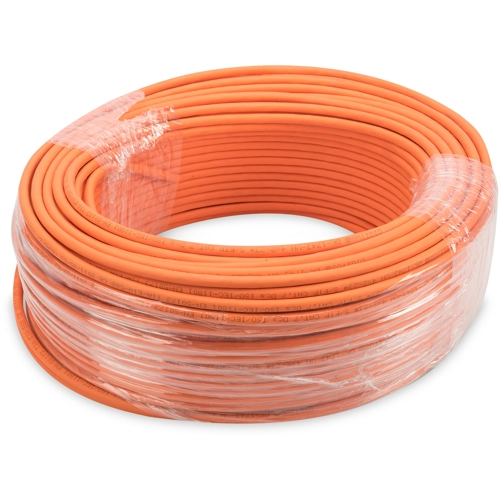

| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
