DK-1743-VH-305-MF-W | DIGITUS
LSZH network cable, Cat 7, 8-wire, AWG 26-1, white, DK-1743-VH-305-MF-W, package with 305 meters
Order No.: 96F113
EAN: 4016032454557
MPN:
DK-1743-VH-305-MF-W
NCNR (non cancelable / non returnable)
Unit Price (€ / pck.)
237.1313 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
237.13 € *
Price list
Quantity
Price per unit*
1 pck.
237.1313 €
5 pck.
225.8382 €
*incl. VAT plus shipping costs
Subject to prior sale
Installation Cable, DK-1743-VH-305-MF-W, DIGITUS
The Cat.7 S/FTP installation cable is designed for use in structured data center & building cabling in accordance with ISO/IEC 11801, DIN EN 50173, IEC 61156-7, EN 50288-9-1. Ideally suited for the transmission of analog and digital data, audio, video, signal transmission, 10 Gbit Ethernet, POE and POE+. The shield structure consists of individually shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.
Features
- 10GBit Ethernet
- 1200 MHz transmission frequency
- PoE Power over Ethernet support
- Maxflex - maximum flexibility for your network cabling
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | network cable | |
| Number of cores | 8 | |
| AWG cross-section | AWG 26-1 | |
| Outer diameter | 5.7 mm | |
| Category | Cat 7 | |
| Colour | white | |
| Material | LSZH | |
| Cable material | copper | |
| Core insulation material | PE | |
| Shielding | shielded | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -20 °C to 60 °C | |
| Temperature range (active) | 0 °C to 50 °C |
Download
Logistics
| Property | Value |
|---|---|

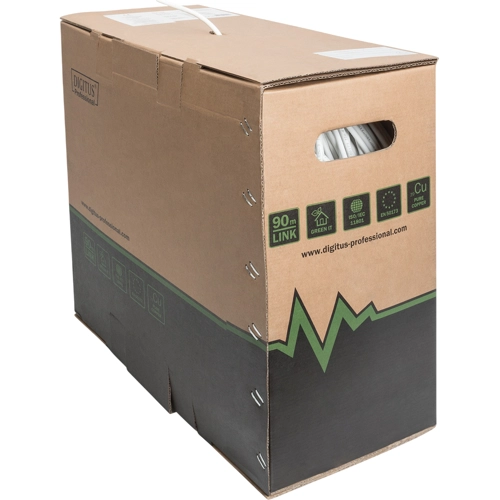

| Original Packaging | Carton with 305 meters |
| Customs tariff number | 85444920 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
