DK-1743-VH-1 | DIGITUS

LSZH network cable, Cat 7, 0.25 mm², AWG 23/1, orange, DK-1743-VH-1

Order No.: 96F169
EAN: 4016032392101
MPN:
DK-1743-VH-1

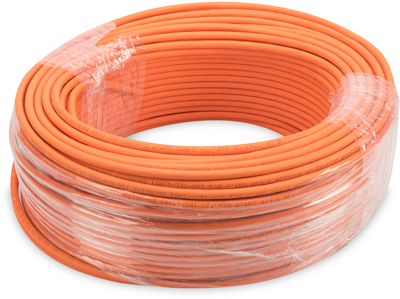

DK-1743-VH-1 DIGITUS Data Cables Image 1

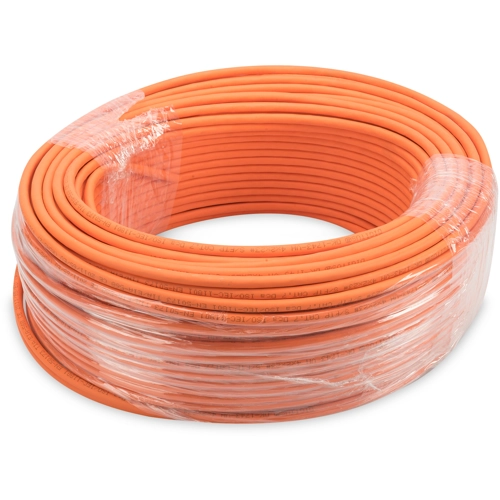

DK-1743-VH-1 DIGITUS Data Cables Image 2

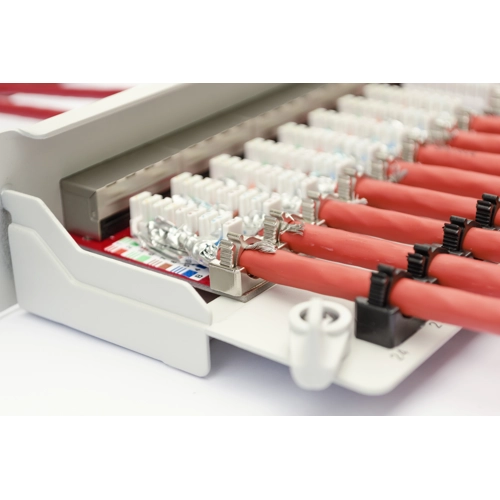

DK-1743-VH-1 DIGITUS Data Cables Image 3
DK-1743-VH-1 DIGITUS Data Cables Image 4
Image may differ
Unit Price (€ / pck.)
84.7518 € *
Available: 0 pck.
Available in 7 Days: 4 pck.
Leadtime: 4 Weeks **
Total Price:
84.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pck.
84.7518 €

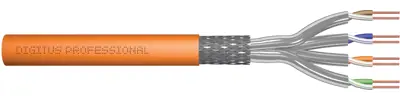

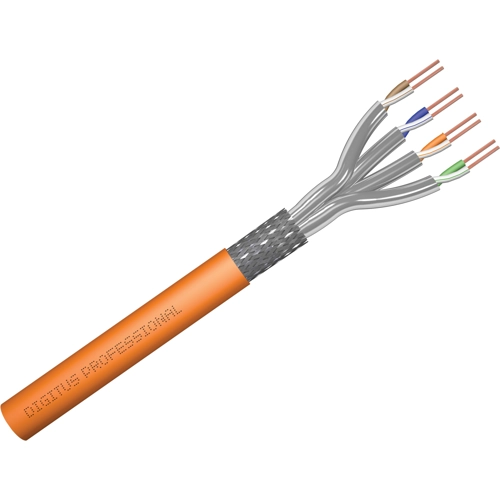

Cat.7 S/FTP installation cable, DK-1743-VH-1, DIGITUS

The Digitus Cat 7 installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

Features

  • 10GBit Ethernet
  • 1200 MHz transmission frequency
  • Permanent link certified
  • PoE Power over Ethernet support
  • CPR class Dca-s1a d1 a1
Technical specifications
Core insulation material PE
Colour orange
Outer diameter 7 mm
AWG cross-section AWG 23/1
Halogen free Yes
Cable cross-section 0.25 mm²
Version installation cable
Category Cat 7
Material LSZH
Cable material copper, bright
Shielding shielded
Temperature range (unmoved) -20 °C to 60 °C
Temperature range (active) 0 °C to 50 °C
Logistics
Country of origin CN
Customs tariff number 85444920
Original Packaging Ring with 100 meters
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
