DK-1741-VH-1-OD | DIGITUS
PE network cable, Cat 7, 0.25 mm², AWG 23/1, black, DK-1741-VH-1-OD
Order No.: 96F168
EAN: 4016032387435
MPN:
DK-1741-VH-1-OD
Unit Price (€ / pck.)
117.0722 € *
Available: 1 pck.
Available in 7 Days: 3 pck. - if ordered today

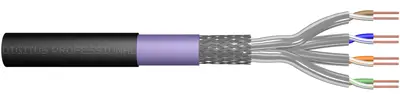

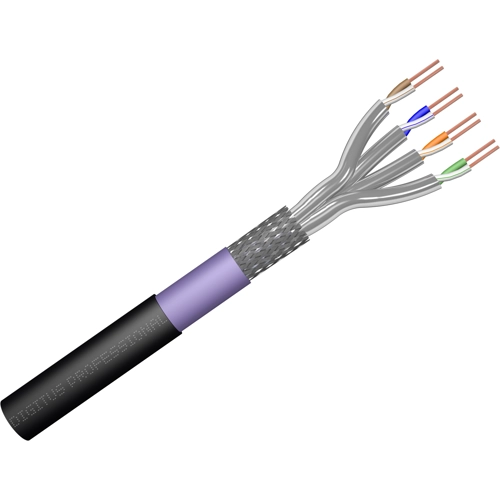

Cat.7 S/FTP burial installation cable, DK-1741-VH-1-OD, DIGITUS
The Digitus Professional Cat.7 S/FTP burial installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 1200 MHz. The cable has a PE outer jacket and a halogen free inner jacket and is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for installations in dry or wet areas, outdoor or ground. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.
Features
- 10GBit Ethernet
- 1200 MHz transmission frequency
- Permanent link certified
- PoE Power over Ethernet support
- PE outer jacket, CPR class Eca inner jacket
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PE | |
| Version | installation cable | |
| AWG cross-section | AWG 23/1 | |
| Temperature range (active) | 0 °C to 60 °C | |
| Halogen free | Yes | |
| Category | Cat 7 | |
| Cable cross-section | 0.25 mm² | |
| Material | PE | |
| Temperature range (unmoved) | -20 °C to 60 °C | |
| Cable material | copper, bright | |
| Colour | black | |
| Outer diameter | 8.5 mm | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|

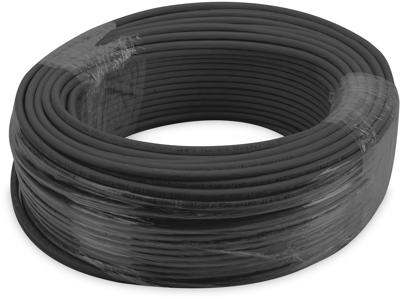

| Original Packaging | Ring with 100 meters |
| Country of origin | CN |
| Customs tariff number | 85444920 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
