DK-1623-A-VH-305 | DIGITUS

LSZH network cable, Cat 6A, 0.25 mm², AWG 23/1, blue, DK-1623-A-VH-305

Order No.: 96F167
EAN: 4016032344124
MPN:
DK-1623-A-VH-305

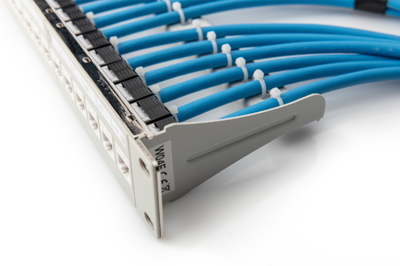

DK-1623-A-VH-305 DIGITUS Data Cables Image 1

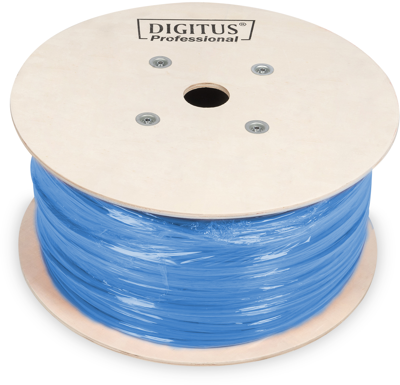

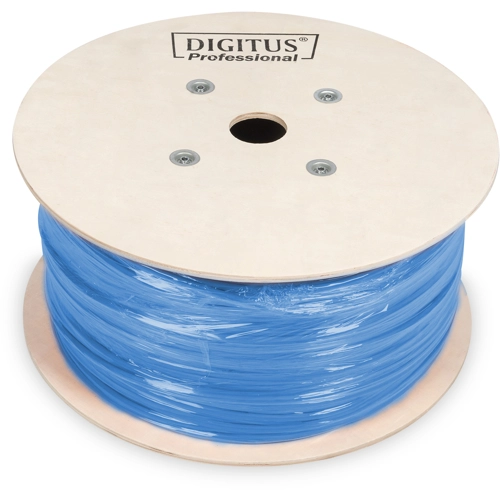

DK-1623-A-VH-305 DIGITUS Data Cables Image 2

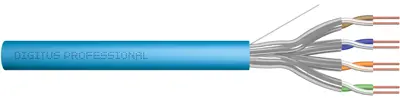

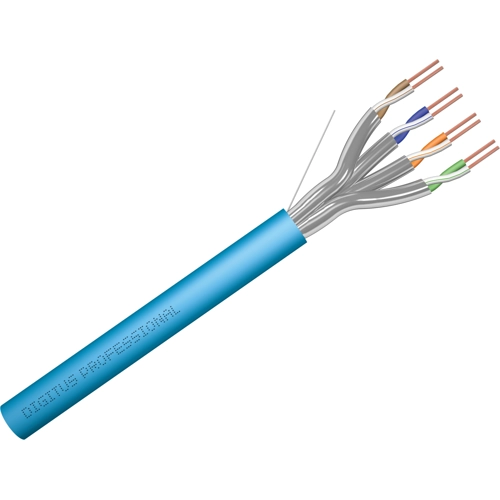

DK-1623-A-VH-305 DIGITUS Data Cables Image 3

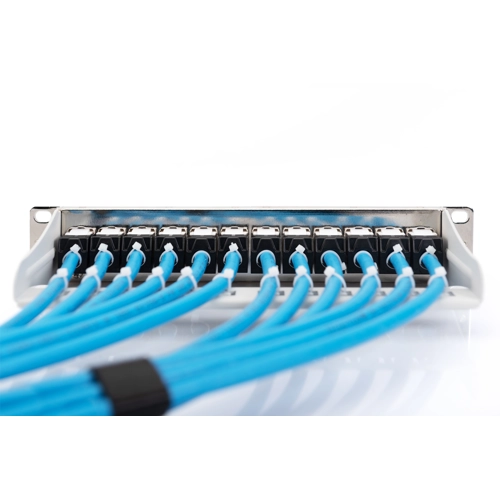

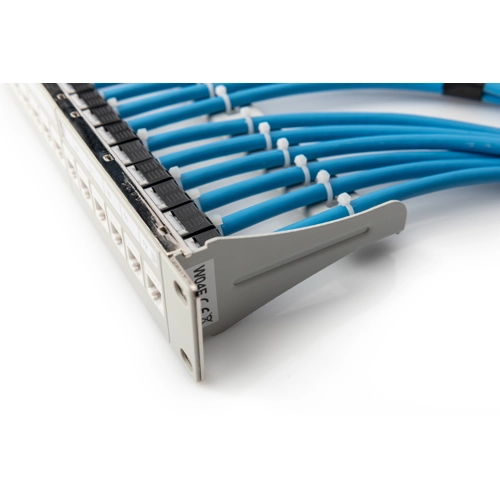

DK-1623-A-VH-305 DIGITUS Data Cables Image 4
Image may differ
Unit Price (€ / pck.)
307.1271 € *
Available: 0 pck.
Available in 7 Days: 1 pck.
Leadtime: 2 Weeks **
Total Price:
307.13 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pck.
307.1271 €

Cat.6A U/FTP installation cable, DK-1623-A-VH-305, DIGITUS

The Digitus® Cat.6A U/FTP installation cable is characterized by the following cable structure 4x2x AWG23/1 and achieves a transmission frequency of up to 500 MHz. The halogen-free cable sheath conforms to the IEC 60332-1, FRNC-B, LSZH-1 and BauPVO Euroclass Eca standards. The cable is suitable for structured building cabling in secondary and tertiary areas. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-10-1.

Features

  • 10GBit Ethernet
  • 500 MHz transmission frequency
  • PoE Power over Ethernet support
  • CPR class Eca
Technical specifications
Colour blue
Outer diameter 7 mm
AWG cross-section AWG 23/1
Halogen free Yes
Cable cross-section 0.25 mm²
Version installation cable
Category Cat 6A
Material LSZH
Cable material copper, bright
Shielding unshielded
Temperature range (unmoved) -20 °C to 60 °C
Temperature range (active) 0 °C to 50 °C
Logistics
Country of origin CN
Customs tariff number 85444920
Original Packaging Reel with 305 meters
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
