DN-19 FAN-2-HO | DIGITUS
Roof ventilation unit, 2 fans, steel, (W x H x D) 482 x 55 x 160 mm, gray, for 483 mm cabinets, DN-19 FAN-2-HO
Order No.: 98F9228
EAN: 4016032174240
MPN:
DN-19 FAN-2-HO
Unit Price (€ / pc.)
171.7289 € *
Available: 1 pcs.
Available in 7 Days: 20 pcs. - if ordered today
Total Price:
171.73 € *
Price list
Quantity
Price per unit*
1 pcs.
171.7289 €
5 pcs.
164.5770 €
*incl. VAT plus shipping costs
Subject to prior sale

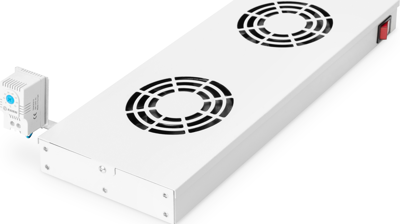

Roof ventilation unit, DN-19 FAN-2-HO, DIGITUS
The roof ventilation unit variable mountable into 483 mm cabinets. Each fan unit comes with two sets of mounting brackets. With the standard set you can install your fan unit into any height unit space of your network- or server cabinet. The second bracket set makes the fan unit possible to be mounted into the roof of 483 mm network- or server cabinets of the varioFLEX series. A switch as well as an adjustable thermostat provides best options for customizations.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 55 mm | |
| Version | 2 fans | |
| Colour | gray | |
| Product type | roof ventilation unit | |
| Type of mounting | screw | |
| Width | 482 mm | |
| Degree of protection (IP) | IP54 | |
| Suitable for | 483 mm cabinets | |
| Material | steel | |
| Depth | 160 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145915 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
