FE36100PC/W FR3/MG3-HAT | Digisound
Miniature speaker, 100 Ω, 83 dB, 7 kHz, black, FE36100PC/W FR3/MG3-HAT
Order No.: 38M230
EAN: 4099891542498
MPN:
FE36100PC/W FR3/MG3-HAT
Unit Price (€ / pc.)
4.1888 € *
Next delivery: 220 pcs. on 2025-11-28
Total Price:
4.19 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1888 €
11 pcs.
3.6890 €
66 pcs.
3.2368 €
122 pcs.
3.0464 €
244 pcs.
2.9036 €
*incl. VAT plus shipping costs
Subject to prior sale

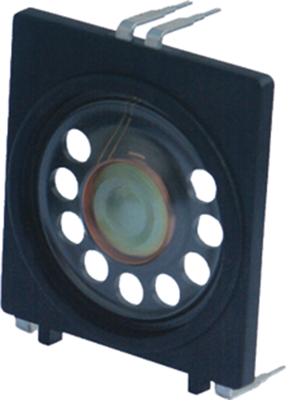

Miniature speakers, type Digisound FE36100PC/W FR3/MG3-HT.
Load rating nominal/maximum: 250/500 mW. Impedance: 100 ohm ±15 %. Resonant frequency: 450 Hz ±100 Hz. Sound pressure level (at 1.0 m, 1.0 W): 83 dB ±3.0 dB. Operating temperatures: –40 to +90 °C. Dimensions: 39.6 x 42.5 x 6.0 mm.
Type: FE36100PC/W FR3/MG3–HT, speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Resonance frequency | 450 Hz | |
| Impedance | 100 Ω | |
| Version | miniature speaker | |
| Sound pressure level | 83 db | |
| Max. transmission range | 7 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85182900 |
| Original Packaging | Bar with 11 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
