F/YWB12 BLACK | Digisound

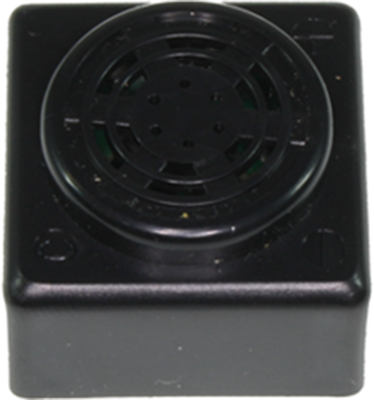

Signal transmitter, 95 dB, 12 VDC, 35 mA, black, F/YWB12 BLACK
Order No.: 36M384
EAN: 4099891541774
MPN:
F/YWB12 BLACK
Unit Price (€ / pc.)
3.8437 € *
Next delivery: 72 pcs. on 2025-09-05
Total Price:
3.84 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8437 €
30 pcs.
3.6295 €
60 pcs.
3.4510 €
90 pcs.
3.2249 €
120 pcs.
3.0345 €
*incl. VAT plus shipping costs
Subject to prior sale
Buzzers, type Digisound F/YWB und F/PWB.
With electronic circuit, high reliability, low consumption, penetrating sound filled with harmonics; Current consumption: max. 35 mA. Frequency: 400 Hz. Sound mode: constant. Operating temperatures: –40 to +70 °C. Weight: 17 g.
Buzzers for PCB mounting, type F/YWB.
Sound volume: min. 95 dB/0.1 m.
Technical attributes (type, operating voltage /rated voltage): F/YWB 12, 8.0 to 16 V/12 VDC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | signal transmitter | |
| Colour | black | |
| Voltage | 12 VDC | |
| Resonance frequency | 400 Hz | |
| Rated current | 35 mA | |
| Sound pressure level | 95 db |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85318070 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
