F/TCW12 | Digisound
Signal transmitter, 85 dB, 12 VDC, 30 mA, black, F/TCW12
Order No.: 36M456
EAN: 4099891541989
MPN:
F/TCW12
Unit Price (€ / pc.)
2.6061 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
2.61 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6061 €
25 pcs.
2.2134 €
100 pcs.
2.0587 €
250 pcs.
1.9516 €
1000 pcs.
1.7731 €
*incl. VAT plus shipping costs
Subject to prior sale

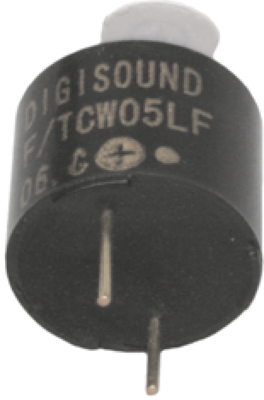

Buzzers, type Digisound F/TCW.

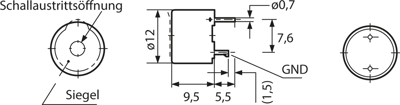

Electromagnetic operation, with integrated oscillator circuit, for PCB mounting with 7.6 mm grid; Current consumption: max. 30 mA. Frequency: 2.3 kHz ±300 Hz. Sound pressure level: min. 85 dB/0.1 m. Sound mode: constant tone. Operating temperatures: –40 to +85 °C. Dimensions: D 12 x 9.5 mm. Weight: 2.0 g. Features: epoxy molded circuit, sealing of the horn for automatic solder processing, penetrating and pleasant tone, compact design, suitable for low temperatures, high sound pressure level, highly reliable and low current consumption.
Technical attributes (type, operating voltage /rated voltage): F/TCW 12, 8.0 to 16 V/12 VDC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 30 mA | |
| Voltage | 12 VDC | |
| Sound pressure level | 85 db | |
| Version | signal transmitter | |
| Colour | black | |
| Resonance frequency | 2300 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85318070 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
